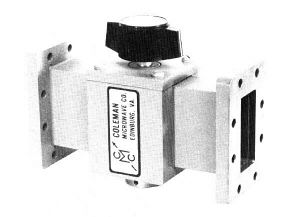

Shorting Switches

This series of shorting switches provide a means of shorting a waveguide transmission system for the purpose of calibration and R.F. power interruption to make measurements of system performance.  These switches are available from 2.2 to 26.0 GHz.  Typical open position specifications are: VSWR: 1.10:1, Insertion Loss: 0.15dB max. Closed Position:
