Fixed Quadriplexer

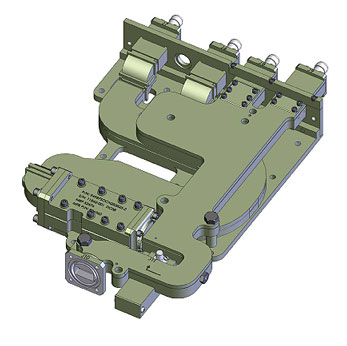

CMC P/N 806360 combines the output of four transmitters (2 in X-Band and 2 in Ku Band) to a common antenna. Channel bandwidths range from 200 MHz to 530 MHz. Isolation between channels exceeds 90 dB. Insertion Loss ranges from 0.8 to 1.2 dB per channel. Integral harmonic supression filters and power monitoring couplers are included. Interface connections to coax and/or waveguide are available. The package is extremely compact, low profile, light weight and rugged.
