Programmable Filters
CMC Part Number 200300

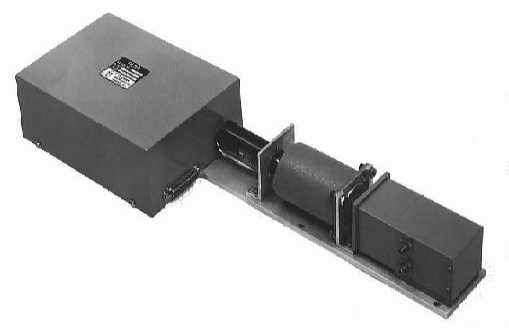

CMC has designed and developed a Tunable Bandpass Filter capable of remote tuning by use of a digital command. The unit responds to a TTL Binary command. Over 1,000 positions of calibration are available and accuracy of +/- .15 MHz from either direction is maintained.
| Electrical Specifications |
| Tuning Range: |
2200 - 2300 MHz |
| 0.2 dB BW: |
2 MHz (fo +/- 1) |
| 20 dB BW: |
12 MHz (fo +/- 1) |
| 30 dB BW: |
20 MHz (fo +/- 1) |
| Ins Loss: |
3.2 dB MAX. @ fo +/-1 MHz |
| VSWR: |
1.5 : 1 MAX @ fo +/- 1 MHz |
| Connectors: |
SMA FEMALE |
| Power Required: |
+28 VDC, +/- 15 VDC, +5 VDC |
| Logic: |
TTL, 10 BIT BINARY CODE |
| Accuracy: |
+/- 15 MHz |
| Size: |
19.50 X 5.50 X 3.25 INCHES |
|
