Coleman Microwave Facilities

Coleman Microwave Company is situated in the picturesque Shenandoah Valley of Virginia along the Interstate 81 corridor.  The factory is easily accessible from the Washington D.C. metropolitan area and Dulles International Airport.  CMC occupies a modern, well equipped 26,000 sq ft building.  In addition to Coleman's contract Aluminum Dip Brazing services, the facility offers design and manufacturing services plus RF alignment/test and inspection of microwave components. Our shipping address is 109 Molineu Rd, Edinburg, VA 22824.

To view map of location - click here.

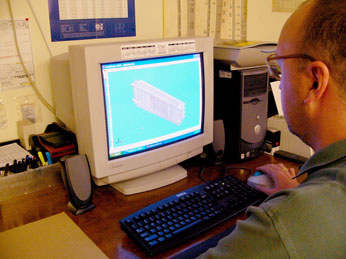

CAD Design and Drafting
2D-AutoCad
3D-SolidWorks

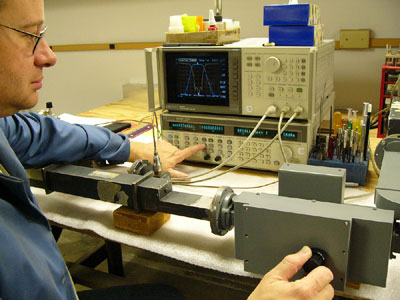

Microwave Test Lab
Scalar Network Analysis to 40 GHz
Vector Network Analysis to 20 GHz

Microwave Test Lab
Coaxial from 10 MHz to 40 GHz
Waveguide from 1 GHz to 40 GHz

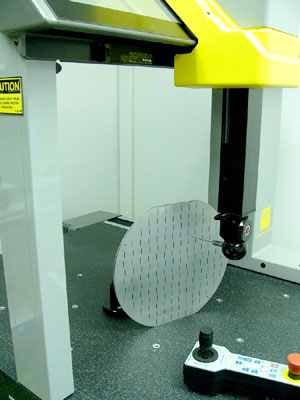

NC Inspection Mistral - Brown & Sharpe CMM Works Microval - Brown and Sharpe (manual) nc_inspection.jpg (126276 bytes)

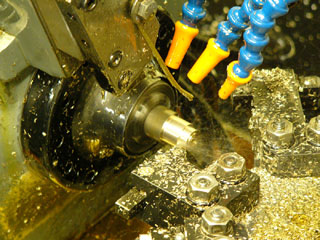

NC Lathe Hardinge SuperSlant

NC Lathe Hardinge HNC nc_lathe-02.jpg (207386 bytes)

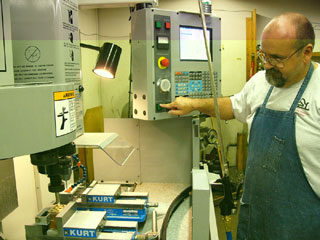

NC Haas Toolroom Mill

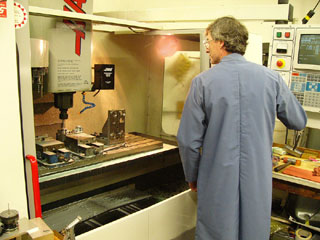

NC Mill Haas VF-3 (2) nc_mill-02.jpg (151115 bytes)

NC Mill Cincinnati Milacron (2)

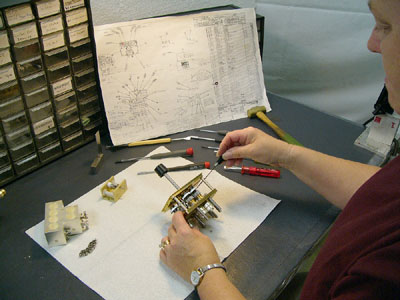

Precision Assembly
Skilled electro- mechanical assembly
IAW detailed prints and specifications

Aluminum Dip Brazing
Large 24" x 40" x 30" deep
Upton salt bath

Specifying Filters
Filter Type & Order
Calibration Options
Engineering Assistance
