Auto Tracking Filters

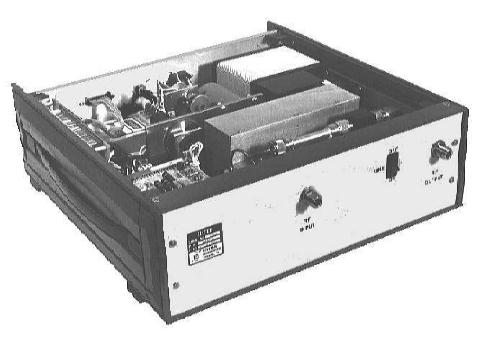

CMC Part Number 200850

CMC model 200850 has the ability to seek out, lock-on and follow an RF signal anywhere in the tuning range of 1.0 - 2.1 GHz. This unit can be offset to automatically track a local oscillator frequency. Other units are available in octave ranges up to 8.0 GHz.


Electrical Specifications
Tuning Range: 1.0 - 2.0 GHz
3 dB Bandwidth: 4% of fo
30 dB Bandwidth: 14% of fo
Insertion Loss: 1.0 dB @ fo
VSWR: 1.5:1 max @ fo
Connectors: Type "N" female
Power Required: +15 VDC @ 0.4 A
-15 VDC @ 3 A
+ 5 VDC @ 1A
