Weather Radar Assemblies

CMC offers fully integrated Front End / Transmitter Assemblies to interface between Receiver, Transmitter, and Antenna. Each assembly is optimized to reduce inter-component interferance, minimize insertion loss, and provide the lowest possible VSWR. Configuration and RF performance are tailored to each customer's individual specifications and requirements.

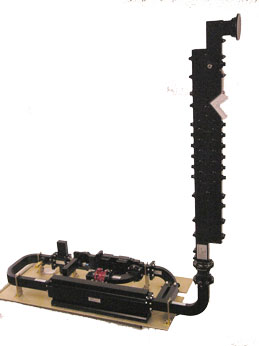

C-Band Front End/Transmitter Assy for Dual Polarized Radars

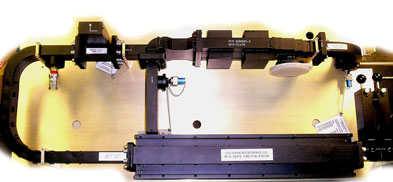

X-Band Front End/Transmitter Assy for Dual Polarized Radars

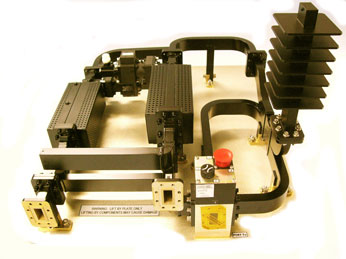

X-Band Front End/Transmitter Assy

C-Band Front End/Transmitter Assy

C-Band Front End/Transmitter Assy
