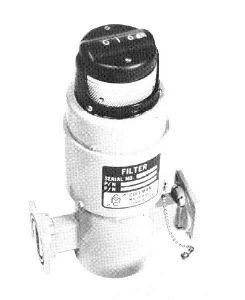

CMC Part Number 601100


Specifications
Tuning range 10.2 - 10.5 GHz
Accuracy ±1 MHz
Insertion Loss 8 ± 1 dB
Temperature Stability ± 1 MHz
Flanges UG-40/U


FREQUENCY RANGE GHz MODEL NO. INS LOSS dB CONNECTOR/ FLANGE ACCURACY
1.0 - 1.5 WC 15 1.4 N FEMALE .01%
1.5 - 2.5 WC 25 1.9 N FEMALE .01%
3.1 - 4.0 WC 40 2.0 N FEMALE .01%
4.4 - 5.0 WW50 1.0 UG149/U .01%
5.9 - 6.4 WW64 1.2 UG344/U .01%
7.1 - 8.4 WW84 1.5 UG 51/U .01%
8.5 - 9.6 WW96 1.6 UG 39/U .01%
10.7 - 13.2 WW132 2.5 WR75 .015%
14.0 - 16.0 WW160 3.0 UG419/U .015%
Waveguide Components
Directional Couplers
Wavemeters
Coaxial/Waveguide
Terminations
Adapters Waveguide to Coaxial
Shorting Switches
Waveguide Assemblies
