Directional Couplers



CMC Part Number 603025

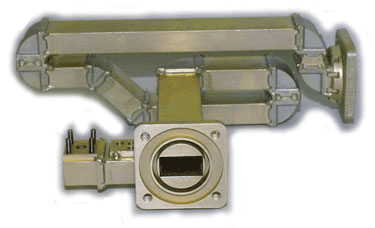

Originally designed for use in a commercial radio, this directional coupler utilizes branch guide coupling techniques to simultaneously provide small package size and tight coupling values. Constructions is in WR75 waveguide.

Other frequencies and coupling values are available. Please contact our engineering staff with your requirements.


Specifications
Frequency Range 10.7 - 11.7 GHz
Coupling 6 ± 0.5dB
Directivity 25 dB min
Mainline VSWR 1.15:1 max
