Waveguide Fixed Diplexer

Back to Fixed Diplexer


CMC Waveguide Fixed Diplexers consist of two Fixed Tuned Bandpass Filters sharing a common port. Signals applied to the common port are separated in accordance with the passband frequency of each filter network.  Signals applied to either channel are isolated from the adjacent channel, but are combined at the common port.

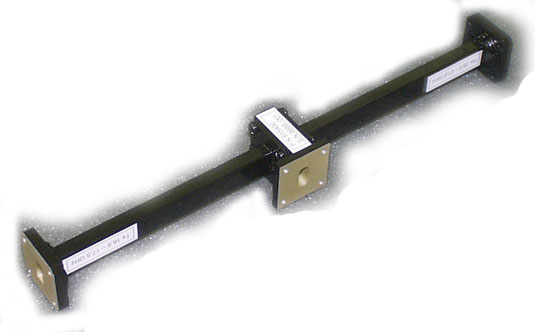

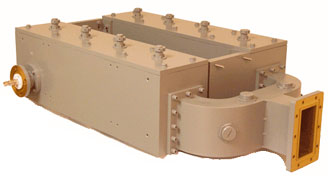

waveguide fixed diplexer Waveguide Fixed Diplexers are offered in circulator designs, for enhanced isolation, and non-circulator designs for non-directional applications and to minimize loss. Waveguide resonator designs offer high isolation, high power handling, and extremely low loss. Frequency ranges from 1 to 40 GHz are available.

Please refer to the DIPLEXER WORKSHEET and contact our engineering staff for assistance in specifying a diplexer to meet your exact requirements.
