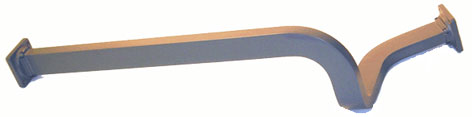

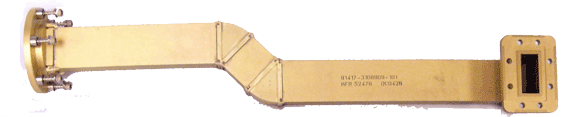

Compound Waveguide Bends

Compound Bends can be created by combining straight sections, formed or mitered E and H bends, twists and/or flexible guide. Such complex assemblies help minimize flanges and cost while optimizing performance. Compound assemblies are available from WR650 to WR28. Materials include aluminum, brass, copper, and silver. All are manufactured with precision flanges and guides to meet your exact requirements. Contact the CMC design staff for assistance in specifying your assembly.
