CoaxialTunable Bandpass Filters
Back to Tunable Coax Filters
TC Series
TC Series Tunable Filter Examples
|

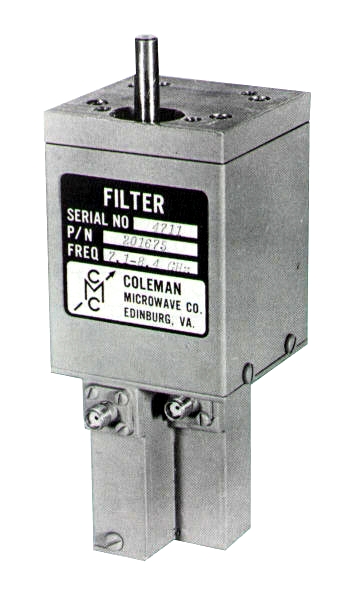

| CMC Part
No.: |
201675 |
| Tuning
Range: |
7.1 - 8.4 GHz |
| 3 dB
BW: |
80 MHz |
| VSWR: |
1.5:1 max. |
| Ins
Loss: |
0.7 dB max. |
| Rejection: |
35 dB min. @f0 ± 150 MHz |
|
 |
| CMC Part
No.: |
200450 |
| Tuning
Range: |
4.4 - 5.0 GHz |
| 3 dB
BW: |
24 MHz |
| VSWR: |
1.4:1 max. @f0 ± 3.5
MHz |
| Ins
Loss: |
1.6 dB max. @f0 ± 3.5
MHz |
| Rejection: |
75 dB min. @f0 ± 100
MHz |
|

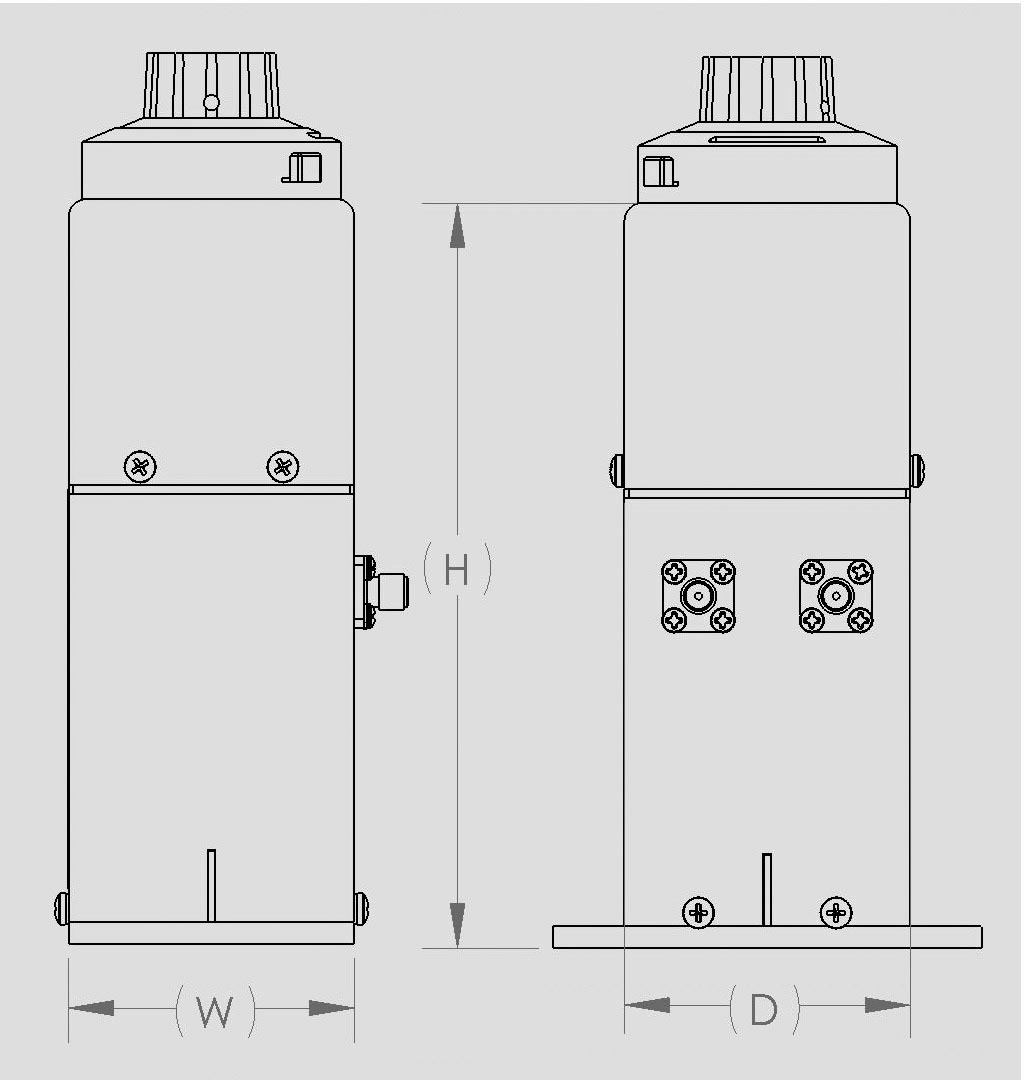

TUNING
RANGE MHz |
MODEL NO. |
3 dB BW NOM'L MHz |
40 dB BW NOM'L MHz |
INS LOSS MAX dB |
H DIM |
W DIM |
D DIM |
| 395 - 455 |
TCB45 |
10.0 |
100 |
0.40 |
12.00 |
3.00 |
3.00 |
| 755 - 985 |
TCB98 |
5.0 |
50 |
1.50 |
8.88 |
3.00 |
3.00 |
| TCD98 |
5.0 |
30 |
2.80 |
8.88 |
3.00 |
3.00 |
| 1250 - 1350 |
TCB135 |
12.0 |
150 |
1.20 |
5.50 |
2.00 |
2.00 |
| TCD135 |
12.0 |
50 |
1.60 |
5.50 |
2.00 |
2.00 |
| 1400 - 1600 |
TCB160 |
12.0 |
150 |
1.20 |
5.50 |
2.00 |
2.00 |
| TCD160 |
12.0 |
50 |
1.60 |
5.50 |
2.00 |
2.00 |
| 1700 - 2100 |
TCB210 |
12.0 |
150 |
1.25 |
4.50 |
2.00 |
2.00 |
| TCD210 |
15.0 |
60 |
1.70 |
4.50 |
2.00 |
2.00 |
| 1999 - 2400 |
TCB240 |
15.0 |
175 |
1.20 |
4.50 |
2.00 |
2.00 |
| TCD240 |
15.0 |
60 |
1.70 |
4.50 |
2.00 |
2.00 |
| 2400 - 2700 |
TCD270 |
24.0 |
80 |
1.30 |
4.50 |
2.00 |
2.00 |
| 2700 - 3100 |
TCB310 |
15.0 |
175 |
1.20 |
4.41 |
2.00 |
2.00 |
| TCD310 |
15.0 |
60 |
1.95 |
4.41 |
2.00 |
2.00 |
| 3100 - 3900 |
TCD390 |
15.0 |
60 |
2.00 |
4.13 |
2.00 |
2.00 |
| 2600 - 3900 |
TCE390 |
60.0 |
140 |
1.00 |
4.13 |
2.00 |
3.00 |
| 3500 - 4200 |
TCB420 |
15.0 |
175 |
1.50 |
4.03 |
2.00 |
2.00 |
| TCD420 |
30.0 |
120 |
1.75 |
4.03 |
2.00 |
2.00 |
| 4400 - 5000 |
TCB500 |
15.0 |
175 |
1.50 |
4.00 |
2.00 |
2.00 |
| TCD500 |
36.0 |
150 |
1.30 |
4.00 |
2.00 |
2.00 |
| TCE500 |
43.0 |
110 |
1.40 |
4.25 |
2.00 |
3.00 |
| 5250 - 5950 |
TCB595 |
20.0 |
235 |
1.70 |
4.00 |
2.00 |
2.00 |
| TCD595 |
20.0 |
80 |
2.50 |
4.00 |
2.00 |
2.00 |
| 5925 - 6425 |
TCB642 |
17.0 |
200 |
1.70 |
4.06 |
2.00 |
2.00 |
| TCD642 |
17.0 |
70 |
2.75 |
4.06 |
2.00 |
2.00 |
| 5900 - 7200 |
TCD720 |
50.0 |
180 |
1.40 |
3.56 |
1.50 |
1.50 |
| 7100 - 8400 |
TCB840 |
20.0 |
235 |
1.95 |
4.25 |
1.50 |
1.50 |
| TCD840 |
38.0 |
155 |
1.60 |
4.25 |
1.50 |
1.50 |
The TC Series Filters yield a butterworth (maximally flat)
response and are available with 2 thru 8 cavities. Tuning is
accomplished by means of a single knob which is coupled to a
precision gear train. All conducting surfaces are silver
plated to minimize insertion loss in the passband. Filters in
this series are available in tuning ranges from 395-8400 MHz.
Outline drawings available upon request.
| Standard
Features |
Options |
|
|
-
Calilbration
(See Cal Options)
-
Modified 3dB
Bandwidths
-
Modified Frequency
Ranges
-
Mounting Brackets
-
Type N, BNC or TNC
Connectors |
|
|
|
