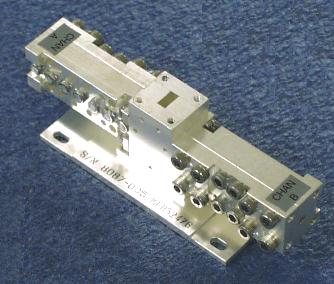

Diplexer
Back to 37-40 GHz Filters
|
Electrical
Performance |
612275
Wideband |
611475 Narrowband |
| Passband Bandwidth, Minimum |
fo
+/- 180 MHz |
fo
+/- 320 MHz |
| Passband Ripple, Maximum |
+/-
0.15 dB |
+/-
0.15 dB |
| Passband Insertion Loss Maximum |
1.3
dB |
0.7
dB |
| Passband VSWR |
1.3:1
Max |
1.3:1
Max |
| 50 dB
Rejection, Minimum |
@ fo
+/- 525 MHz |
@ fo
+/- 940 MHz |
| Operating Temperature Range (Full Spec) |
- 30
TO 70 ° C |
- 30
TO 70 ° C |
MECHANICAL SPECIFICATIONS
- Overall Length 4.75 Inches
- Input/Output WR28
Flange Pattern
- Standard
Iridite/Silver Plate Finish
- Paint Option
Available
Custom Bandwidths available. Call
with specificaitons
|
